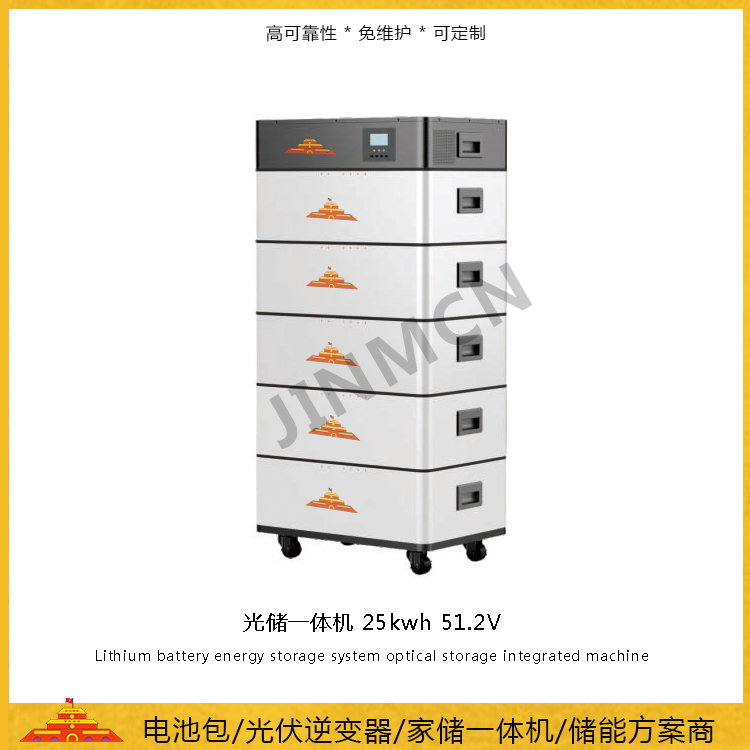

Capacity:25kwh
Pressure resistance:51.2V
The optical storage integrated machine integrates photovoltaic controllers and bidirectional converters to achieve an integrated solution of "light+energy storage". The system adopts modular design, which can achieve flexible configuration of photovoltaic, battery, and load. Prioritize the allocation of photovoltaic energy to energy storage batteries or load power supply through intelligent algorithms to meet the needs of multiple scenarios on the user side
儲能容量 stored energy | 25kwh |
額定功率 rated power | 5kw（1.5kw-11kw可選） |
相數 phase number | 單相 single phase |
電池 battery | |
額定電壓 rated voltage | 51.2V |
電池額定容量 battery capacity | 100Ah |
持續放電電流 Continuous discharge current | 100A |
最大放電電流 maximum discharge current | 150A≤3S |
標準充電電流 Standard charge current | 50A |
快速充電電流 Fast charging current | 100A |
電池配置數量 Number of battery configurations | 5 |
循環次數 Number of cycles | ＞2500次 |
電池電壓范圍 Battery voltage range | 40-58.4V |
功率模塊Power Module | |
市電輸入電壓范圍 Mains input voltage range | 家電模式：90~280vac：UPS:170~280vac |
市電輸入額定頻率 Rated frequency of mains input | 50hz/60hz 自適應 |
最大推薦組件功率 Maximum recommended component power | 4500W |
組件開路電壓 Component open circuit voltage | 450V |
MPPT工作電壓范圍 MPPT operating voltage range | 120V~430V |
充放電效率 charge-discharge efficiency | 93% |
Multiple operating modes
Grid connected operation
The AC side of the optical storage integrated machine is connected to the power grid to achieve grid connected power generation
Off grid operation
In the absence of a power grid, the optical storage integrated machine can use a combination of photovoltaic and energy storage batteries to power the load
Intelligent and offline switching
In grid connected mode, the system automatically operates in grid connected or off grid mode by determining whether there is grid connection
Wide functionality
The system integrates PCS mode, spontaneous self use mode, peak power compensation mode, and other operating modes; Modular system design enhances the diversity of photovoltaic, battery pack, and load coordination; Can accept power grid dispatch, including communication methods such as RS485 and CAN; Equipped with low voltage ride through and reactive power compensation functions;
Green and efficient
Equipped with MPPT photovoltaic maximum power tracking function, ensuring greater utilization of solar energy; Three level control technology to improve efficiency and power quality; Photovoltaics can directly charge the battery, improving system efficiency;
Safe and reliable
Adopting AC and DC dual input redundant power supply to ensure stable operation of the control power supply; 100% unbalanced load capacity during off grid operation; 105% rated output power can operate for a long time; Off grid inverter function, forming a microgrid system to ensure uninterrupted power supply;
